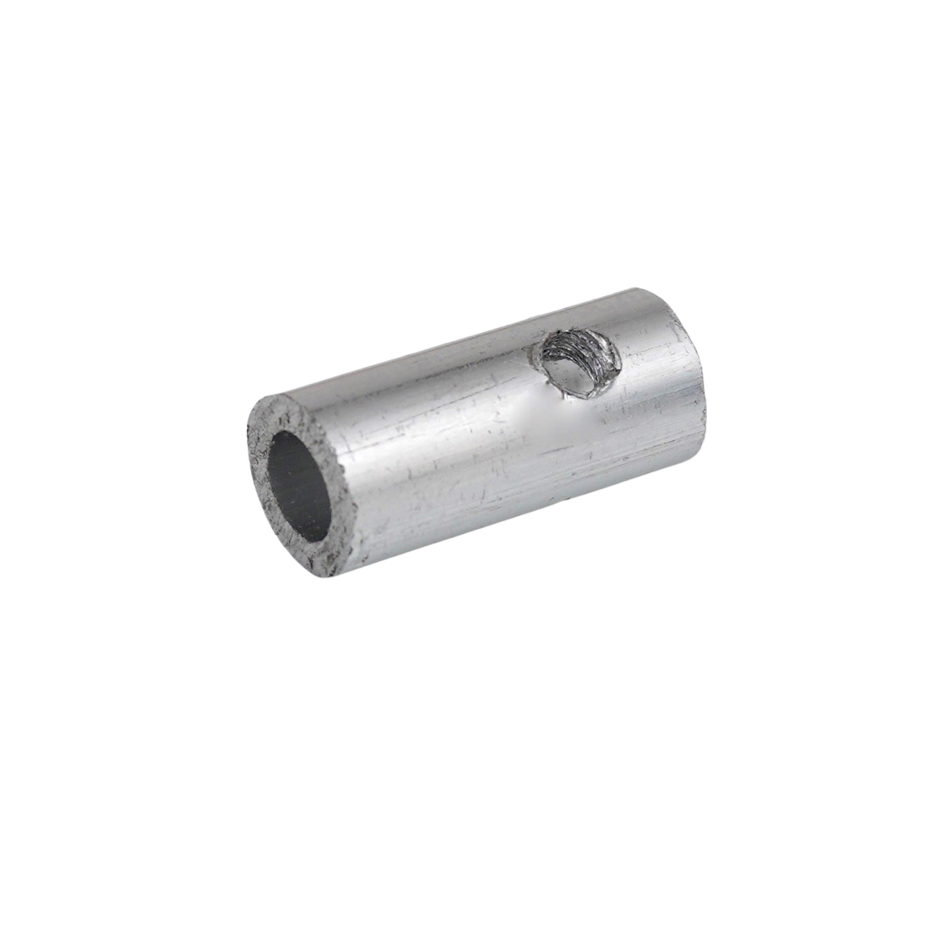

047.1 – Tube ⌀6mm, 18mm

Basic info

• A small tube with an inserted M3 thread
• material: strong
• measures: length max 18mm; inner ⌀ min 3mm, outer ⌀ max 6mm
• holes: an inserted thread (M3) with the center of the hole 6mm apart from the side.

.

made by hand

*

Tolerance

• Size: There is a little bit of tolerance in the thickness. Other than that the dimensions are pretty set (see above “measures”)
• Material: standard tolerance – but it should be strong enough for an inserted thread

Get this part

• Buy: Available as local make.
• Make: No instructions available

Introduced by

• Lars Zimmermann via O.pen
• Original post, original post backup.pdf
• Open: Shared under TPP 1.0.
• Disclaimer
