Fasteners / Multipurpose Parts / O.pen · August 25, 2022

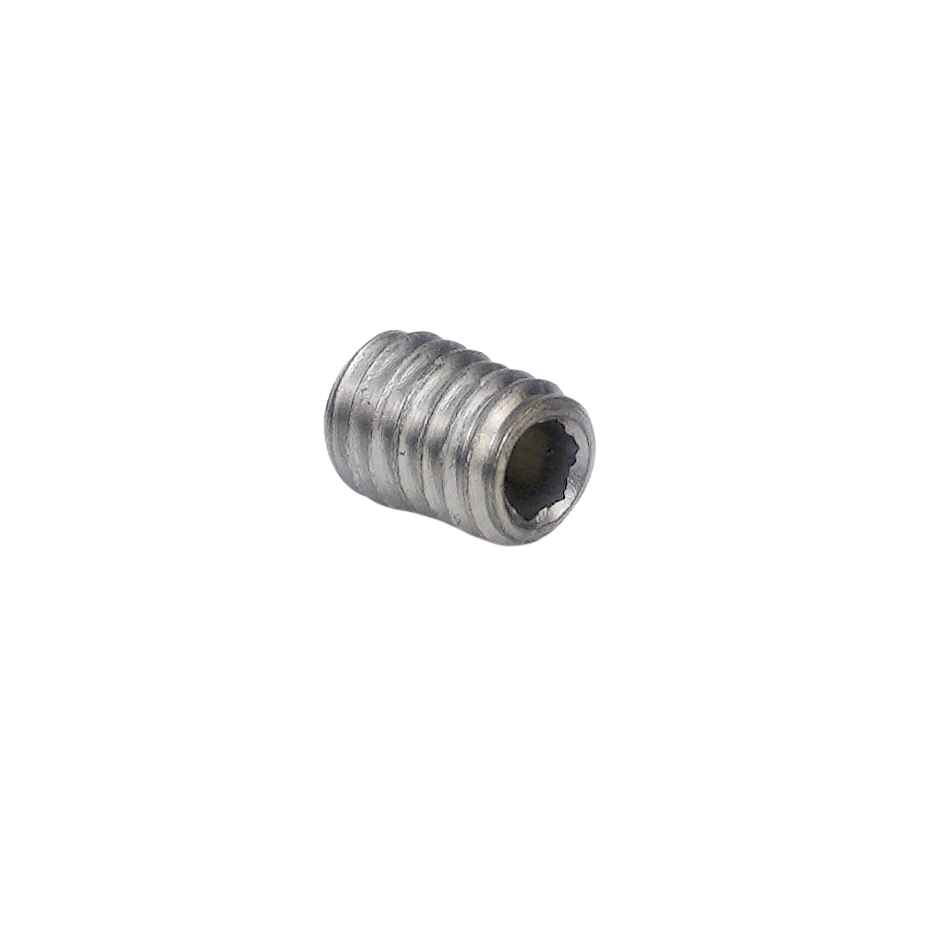

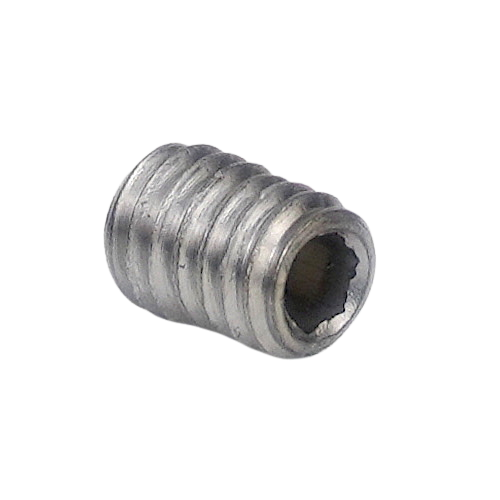

046.1 – M3 set screw 16mm

Use cases

Basic info

  • Off the shelf set screw
  • material: strong
  • measures: M3, ~16mm

Tolerance

  • Size: standard tolerance
  • Material: standard tolerance

Get this part

  • Buy: Readily available in stores, search for: “M3 set screw”
  • Make: No instructions available

Introduced by

  • Lars Zimmermann via pen O-Pen
  • Original post, original post backup.pdf
  • Open: Prior art (most likely)
  • Disclaimer
Use cases
Got a new idea for this part? Share it. Design with us ⤤
