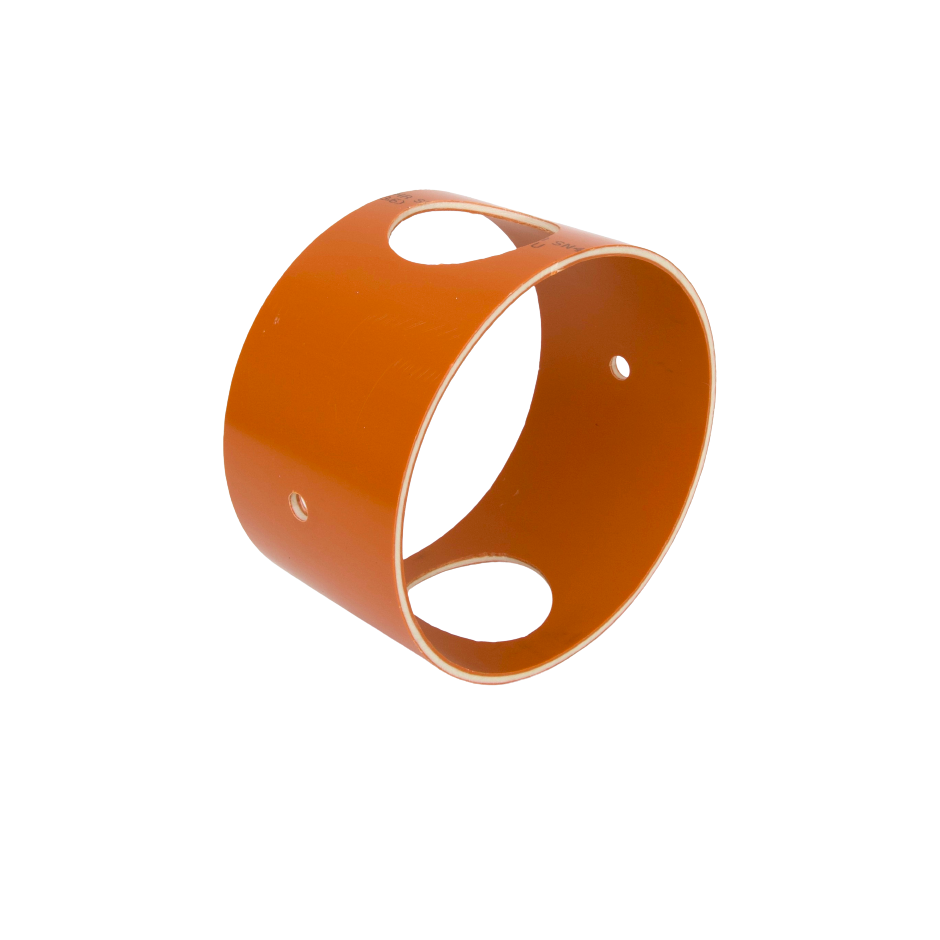

015.1 – Tube 90mm inner ⌀ 152mm

Basic info

• A tube
• material: strong
• measures: height ~ 90mm, inner diameter 152 mm
• holes: 2 holes ⌀ 54 mm across from each other, 2 holes ⌀ 10mm across from each other and in 90° to the center of the the larger holes. The center of the holes are in the center of the part height.

quick color studies

Tolerance

• Size: the inner diameter is fixed to 152 mm, all the is flexible within the standard tolerance
• Material: standard tolerance

Get this part

• BUY
• Globally ↓
  • Available as local make.
  • From Max of Materialogic (made on demand, shipping from Germany)
• Locally ↓
  • None so far
  • Want to make and sell this part? Add your store
• Make: This part is very easy to make! Our prototypes were made from standard off the shelf KG drain pipes (160mm) made from PVC. You can cut these pipes with a metal saw and drill it like wood. But maybe you can think of another way.

Introduced by

• Lars Zimmermann via Lamp Moe
• Original post, original post backup.pdf
• Open: Shared under TPP 1.0
