Ikego Part Design Suggestions

Vs. 1.1

How to design parts that can creatively reused by others?

Some suggestions:

1 A Shared Grid

Erector sets are a good example of multipurpose parts.

Meccano, Eitech, Lena are some brands for metal versions of this

BILOfix, Baufix, Brio Constructor are some brands for wooden versions; img by E. Poulsen, cc-by-sa

All parts of an erector set fit together with all other parts. This works because the parts are based on the same grid – the distance between the holes for the nuts and bolts is always the same in all the parts. When you add a new part, just follow this grid and the new part can be married to all the other parts in an infinite number of ways.

So if you want to design a part for multiple purposes, look for a grid that already exists and has lots of parts to connect to. Ikego suggests a grid of 30mm between two holes.

The Ikego grid uses a 30mm grid. Obviously, unlike the toys, not every possible hole is drilled, just the ones needed for this part’s known uses. If you are interested in the origin of the Ikego 30mm grid, read here & here.

All parts of Addi the chair are based on the 30mmm Ik3go grid. It was a challenge to find a design where the Ikego grid makes a comfortable chair. But it was worth it. The parts are also useful for several other things. Especially the leg rails have been reused many times.

The Ikego Grid is a suggestion. It is not mandatory, if you want to share your design here on Ikego. But it will allow you to connect to many other parts from the Ikego parts catalog. But feel free to plug in other grids.

2 Tolerance → local reuse, repair and manufacturing

Ideally, an open multipurpose part will allow local manufacture – even in small workshops. So ideally, for most applications, the part is relatively independent of the material you make it from, and also allows for some inaccuracy in the dimensions of the manufactured part. This is what we call “tolerance”.

Why “material” tolerance? → Because it allows the use of local or leftover material. And also a designer’s creative expression when picking out the final materials and colors.

Why size tolerance? → Because it allows the use of simple tools that are available everywhere. If you need a heavy, expensive machine capable of producing 0.1mm accuracy to make your part work, local manufacture is difficult to achieve, which will make repair or reuse a bit harder. The standard tolerance allows a size deviation of +/- 15mm from the values mentioned in the parts post.

Examples ↓

Different makes of the part **003.1**. Each make works in all models that have this part in their parts list.

The same part executed in different materials and with small deviations in shape and size.

^{Different makes of the same model. You can disassemble the 4 chairs and mix the parts between them.}

✼

It is important to understand that the number, position and diameter of the holes are not affected by the tolerance! The holes and their exact position in relation to each other make up the identity of the part. Because this is how the parts connect to each other within a grid.

These parts are all the same

↑
The outer shape varies slightly, but the holes are the same size and in the same position relative to each other.

These parts are different

↑
Same board size, same position of holes in the grid, but the holes are of a different size.

Different parts

Same parts

✼

Tolerance is a running experiment! We are aware that tolerance may lead to cases where a part does not work in a design with that part (for example when the material is too weak or parts overlap). Le’s see if this really emerges and how big an issue it will be. Ikego is open research. Research with us.

Tolerance enables creative expression. A model is set but the final curves, colors and materials are decided by the designer.
_

3 Bolt sizes & Hole sizes

The tolerance rule explains why bolts come in these steps:

10 – 30 – 50 – 70 – 90 – 110 – 130 – …

+/- 15mm allows to have all steps in between – for example 14mm.

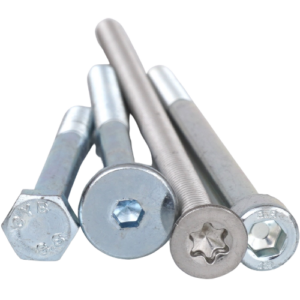

heads of bolts are free to chose (tolerance)

So far, Ikego designers have worked with 3 different hole & bolt sizes:

10mm – for structures that need to be really strong or to cover M6 cap nuts.

6mm – for M6 screws that are strong enough for furniture such as beds or chairs

4mm – for M4 bolt solutions such as headphones, rucksacks and other small items that don’t need to support a lot of weight.

But this is just a suggestion. Feel free to step out of this.

What are ‘makes’?

An Ikego solution is a collection of multipurpose parts that are assembled into a model. The parts are well documented, open and can be manufactured locally. Everything is designed to allow the use of local materials and tools. This means that different makes of the same model can look quite different. One might execute the chair in metal, another in wood and a third in colourful recycled plastic. But the basic model is the same. And it is possible to swap parts between the 3 makes. You have a chair with metal legs, a wooden seat and a plastic back.

Show us your interpretation of a model.

To understand this better make sure not to miss what is said above about ↑ tolerance.

If you are interested in the theory behind this, you can read this article: “What is the final version in Open Circular Design?”
